Material: PET film
Adhesive: Solvent acrylic adhesive
Color: Red / Dark yellow / Black / Orange / Pink / White / Light yellow / Green / Blue
Thickness: 0.05mm/0.055mm/0.06mm/0.08mm/0.11mm
Description：

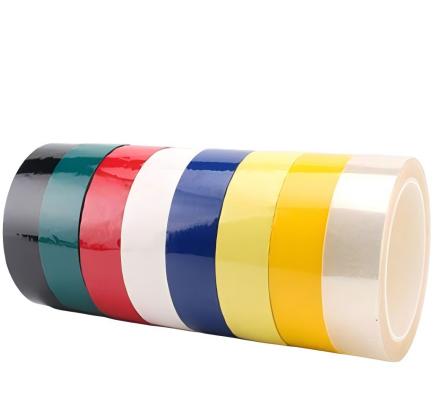

Mylar tape is using polyester film as backing material and coated with solvent acrylic adhesive. It is flame retardant and many colors are available.
Application：
It is suitable for insulation and fixing of various motors and electronic components such as transformers, capacitors, relays, voltage regulators, motors, etc., motor stator coil covering, motor coil fixing, power transformer coil wrapping and outer insulation, and circuit board impregnation process. In the middle, cover the part of the gold finger to prevent the immersion and pollution of the electroplating solution, and protect the circuit board.lable. It is used for insulating electric and electronic components.
Technical Data:
| Specification | Elongation （%） | Tensile strength （kgf/m²） | Basis weight （g/m²） |
|---|
| 12μm | 35↑ | 0.18↑ | 18.25 |
| 15μm | 35↑ | 0.22↑ | 20.25 |
| 25μm | 35↑ | 0.37↑ | 33.75 |
| 38μm | 35↑ | 0.58↑ | 51.3 |
| 50μm | 35↑ | 0.75↑ | 79.65 |
| 75μm | 35↑ | 1.12↑ | 86.4 |
