Yarn Type: C-Glass/E-glass
Yarn Structure: Single Yarn
Surface Treatment: Vinyl coated
Technique: Winding Filament Roving
Diameter: 5.5-16um
Description:

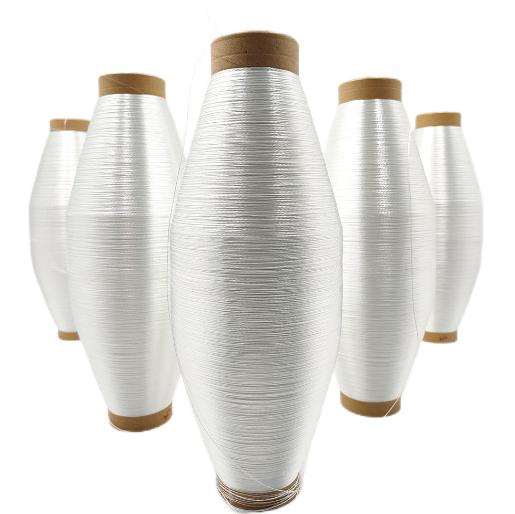

Glass fiber yarn are mainly divided into single yarn and twisted yarn, which are made of E glass with heat resistance 600℃. The filament diameter is from 6 to 13 µm. Sizing type can be paraffin, silane and starch based on different use.
| Yarn Type | C-Glass/E-Glass |
| Yarn Structure | Single Yarn |
| Moister Content | ＜0.1% |
| Tensile Strength | ＞0.6N/Tex |
| Surface Treatment | Vinyl Coated |
| Technique | Winding Filament Roving |
| Diameter | 5.5-16um |
Technical Data:
| Glass | Filament Diameter | Type in U.S.A | Twist Degree | |
| EC9-33×1×2 | E | 9um | ECG 150 1/2 | S65 |
| EC9-33×1×3 | E | 9um | ECG 150 1/3 | S65 |
| EC9-33×2×3 | E | 9um | ECG 150 2/3 | S110 |
| EC9-68×1×0 | E | 9um | ECG 75 1/0 | Z28-35 |
| EC9-68×1×2 | E | 9um | ECG 75 1/2 | S28-110 |
| EC9-136×1×0 | E | 9um | ECG 37 1/0 | Z28-35 |
| EC9-136×1×2 | E | 9um | ECG 37 1/0 | S28-110 |
| CC9-33×1×2 | C | 9um | CCG 150 1/2 | S28-110 |
| CC9-33×2×2 | C | 9um | CCG 150 2/2 | S28-110 |

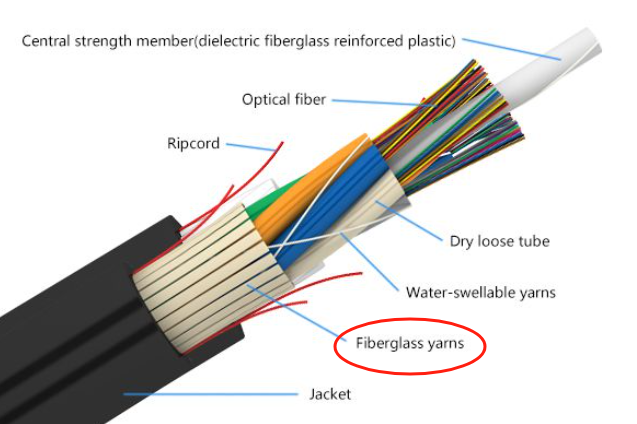

Application：
Package:

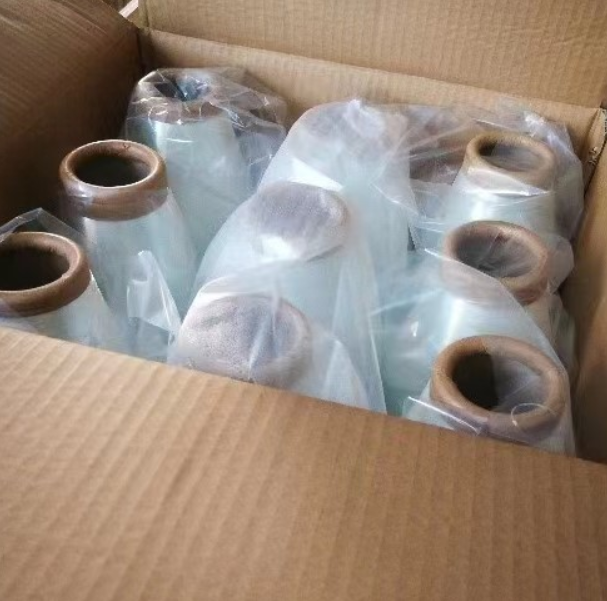

Each bobbin is 16.5+-1.5kgs and wrapped by a PVC shrink bag.Each pallet containers 3 or 4 layers,and each layer contains 16 bobbins.The bobbins in the pallet are piled and connected as start to end by air spliced with manual knots.The whole pallets of bobbins are wrapped with cardboard boxes packed on the pallet with packing straps.Or packing it with multi-layers of shrink film.Or as customers’requirement.
