Upgrade your cable shielding with our Copper Tape! high electrical conductivity, mechanical strength and good processing performance, is an ideal shielding material used in cables.
Description:

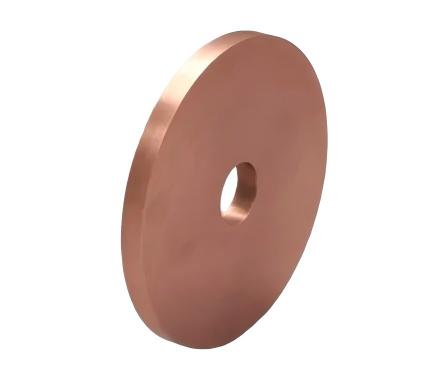

The copper tape is one of the very important raw materials used in cables with high electrical conductivity, mechanical strength and good processing performance which is suitable for wrapping, longitudinal wrapping, argon arc welding, and embossing. It can be used as a metal shielding layer of medium and low-voltage power cables, passing capacitive current during normal operation, also shielding the electric field. it can be used as a shielding layer of control cables , communication cables, etc, resisting electromagnetic interference and preventing electromagnetic signal leakage; it can also be used as the outer conductor of the coaxial cables, acting as a channel for current transmission, and shielding electromagnetic.
Compared with aluminum tape /aluminum alloy tape, the copper tape has higher conductivity and shielding performance, and is an ideal shielding material used in cables.
Features:
The copper tape we provided has the following characteristics:
1) The surface is smooth and clean, without defects such as curling, cracks, peeling, burrs, etc.
2) It has excellent mechanical and electrical properties which is suitable for processing with wrapping, longitudinal wrapping, argon arc welding and embossing.
Application:
The copper tape is suitable for metal shielding layer and outer conductor of medium and low voltage power cables, control cables, communication cables, and coaxial cables.
Technical Specification:
| Item | Unit | Technical parameters | |
| Thickness | mm | 0.06mm | 0.10mm |
| Thickness tolerance | mm | ±0.005 | ±0.005 |
| Width tolerance | mm | ±0.30 | ±0.30 |
| ID/OD | mm | According to requirement | |
| Tensile Strength | Mpa | ≥180 | >200 |
| Elongation | % | ≥15 | ≥28 |
| Hardness | HV | 50-60 | 50-60 |
| Electrical resistivity | Ω·mm²/m | ≤0.017241 | ≤0.017241 |
| Electrical conductivity | %IACS | ≥100 | ≥100 |
| Note: More specifications, please contact our sales staff. | |||
