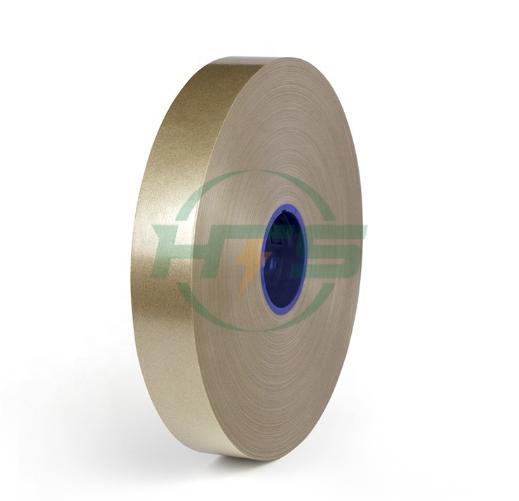

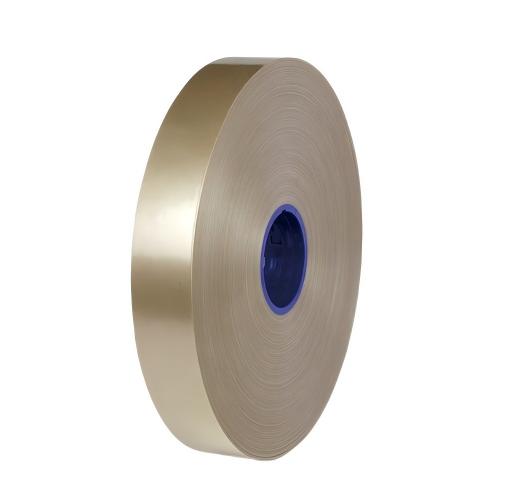

Mica tape is made of high quality phlogopite mica paper with non-alkali fiberglass cloth or thin film as the reinforcing material,bonded by high temperature resistant silicone resin,baked and dried at high temperature and constant speed,then cut and processed into roll material by special cutting machine.

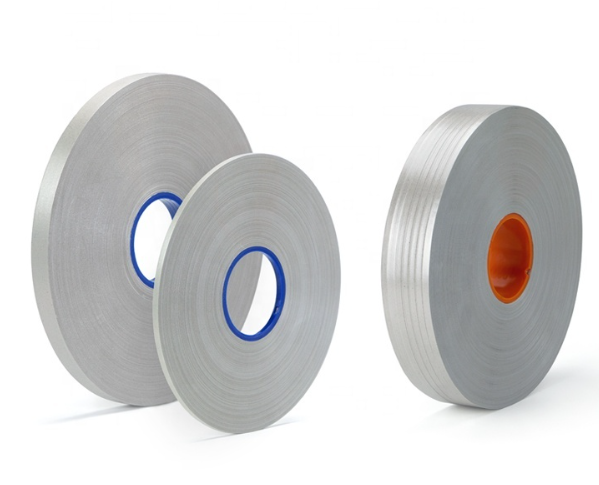

Color: Triple mica tape for gold and synthetic mica tape is white
Description:

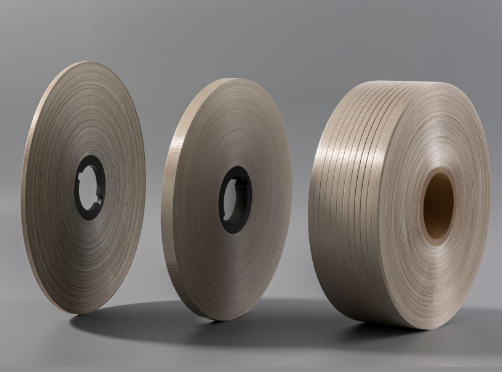

Mica tape, also known as refractory mica tape, is a kind of refractory insulating material, according to the function can be divided into: mica tape for motor, mica tape for cable. According to the structure, it is divided into: double-sided tape, single-sided tape, triplet belt, double film belt, single film belt, etc. According to mica can be divided into: synthetic mica tape, gold mica tape, Muscovite tape.
Types:
1. Double-sided phlogopite tape: with phlogopite paper as the base material, with glass fiber cloth as the double-sided reinforcing material, mainly used for fire-resistant insulation between the core wire and the outer sheath of fire-resistant cable. Good fire resistance, recommended for general engineering.
2. Single-sided mica tape: using phlogopa paper as the base material and glass fiber cloth as the single-sided reinforcing material, it is mainly used for fire-resistant cable as the fire-resistant insulation layer. Good fire resistance, recommended for general engineering.
3 .Three-in-one phlogopa tape: with phlogopa paper as the base material, glass fiber cloth and carbon-free film as single-side reinforcing material, mainly used for fire-resistant cables as fire-resistant insulation layer. Good fire resistance, recommended for general engineering
4. Double-film phlogopite tape: with phlogopite paper as the base material, with plastic film as double-side reinforcement, mainly used for motor insulation layer. Poor fire resistance, fire resistant cable is strictly prohibited.
5. Single-film phlogopite tape: with phlogopite paper as the base material, with plastic film as a single-side reinforcement, mainly used for motor insulation layer. Poor fire resistance, fire resistant cable is strictly prohibited
Motor Mica Tape
The insulating material of the motor is determined by the material with the lowest heat resistance grade among the main insulating materials used.Insulation materials commonly used in motors are divided into A,E,B,F,H and C six grades according to their heat resistance.
| Item | Insulation Grade | Materials | Temperature-resistance ≤ ℃ | Application |
| 1 | A | 经过浸渍处理的棉纱、丝、纸等有机纤维材料以及普通漆包线上的磁漆等 Impregnated cotton yarn, silk, paper and other organic fiber materials with enamel on ordinary enamelled wire | 105 | Transformer |
| 2 | E | 用聚酯树脂、环氧树脂、三醋酸纤维等制成的薄膜和聚乙烯醇缩醛高强度漆包线上的磁漆等 Film made of polyester resin, epoxy resin, triacetate fiber with enamel on polyvinylacetal high strength enamelled wire, etc | 120 | Small and medium AC/DC motors |
| 3 | B | 云母、石棉、玻璃丝等无机物用有机漆或树脂（做了耐热性处理）作为粘合剂制成的材料及其组合物， 聚酯高强度漆包线上的磁漆等 Materials and compositions made of inorganic substances such as mica, asbestos, glass wire, with organic varnish or resins (heat-resistant treatment) as adhesives. Polyester high strength enamelled wire enamel, etc | 130 | Large and medium-sized synchronous machine and small and medium-sized AC-DC motor |
| 4 | F | 云母、石棉、玻璃丝等无机物用硅有机化合物改性的合成树脂漆或耐热性能符合这一等级要求的醇酸、 环氧树脂作为粘合剂制成的材料及其组合物 Synthetic resin paint made of mica, asbestos, glass wire and other inorganic substances modified with silicone organic compounds or materials and compositions made of same heat resistance grade alkyd, epoxy resins as adhesives. | 155 | |
| 5 | H | 硅有机物及其云母、石棉、玻璃丝等无机物用硅有机漆作为粘合物而制成的材料 Materials useing silicone organic paint as adhensives, made of silicone organic matter and mica, asbestos, glass wire and other inorganic materials | 180 | Aero motor, crane motor, traction motor |
| 6 | C | 无枯合剂的云母、 石英、玻璃丝等，用热稳定性特别好的肿有机树脂、 聚酰亚胺浸渍漆等处理过的石棉、玻璃纤维织物或其他制成物，以及聚酰亚胺基漆包线的磁漆、聚酰亚胺薄膜等 No dry mixture of mica, quartz, glass wire, etc., with a particularly good thermal stability of swollen organic resin,or asbestos, fiberglass fabrics or other products treated by polyimide impregnation paints. With polyimide based enamelled wire ename、polyimide film, etc | more than 180 |
Technical Data:
Specification | 产品规格 Specification | 抗张强度 Tensile strength （N/cm） | 介电强度 Dielectric strength KV/mm | 云母含量 Mica Content % | 绝缘电阻 Insulation resistance （MΩ） | 基重 Basis weight （g/m²） | 适用耐火 线缆范围 range of application |
单面金云母带 Phlogopite Mica Tape single sided | 140±5μm | 50↑ | 10↑ | 60↑ | 1.0↑ | 185±10 | GB12666.6-90B |
双面金云母带 Phlogopite Mica Tape double sided | 140±5μm | 70↑ | 10↑ | 60↑ | 1.0↑ | 210±10 | |
单面合成云母带 Synthetic Mica Tape single sided | 140±5μm | 50↑ | 10↑ | 60↑ | 1.0↑ | 185±10 | GB12666.6-90A |
双面合成云母带 Synthetic Mica Tape double sided | 140±5μm | 70↑ | 10↑ | 60↑ | 1.0↑ | 210±10 | |
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers | |||||||
Electrical Properties：
Phlogopite mica can ensure no breakdown occurs within 90 minutes under the temperature of 800 ± 50 ° c, voltage 600~1000V; Synthetic mica tape can ensure no breakdown occurs within 90 minutes under the temperature of 1000 ± 50 ° c, voltage 600~1000V. Ingredients doesn't contain asbestos, doesn't produce toxic gases at high temperature, with acid and alkali, Corona, radiation-resistant characteristics. Finished dry and non-adhesive, and has good bending properties, flexibility, high tensile strength at high wrapped wire and cable.
