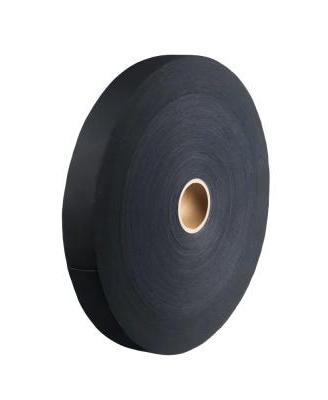

Made of water block tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.
Description:
Made of water block tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.
Application:
Suitable for waterproof type, medium, high, extra high voltage power cables and other control and Instrumentation cables, communications, signals of semi-conducting water block layer with shielding requirements, with water block, cushioning and shielding effects.
Technical Data:
Specification (μm) | 300±30 | 400±30 | 500±30 | 600±40 |
基重 Basis weight (g/m²) | 120±10 | 150±10 | 170±15 | 190±20 |
拉伸强度 Tensile strength (N/cm) | 30↑ | 40↑ | 50↑ | 60↑ |
伸长率 Elongation (%) | 12↑ | 12↑ | 12↑ | 12↑ |
膨胀速率 Swelling rate (mm/1st min) | 8↑ | 10↑ | 12↑ | 14↑ |
膨胀高 Swelling height (mm/3min) | 12↑ | 14↑ | 16↑ | 18↑ |
表面电阻 Surface resistance (Ω) | 1500↓ | 1500↓ | 1500↓ | 1500↓ |
体积电阻 Volume resistance (Ω.cm) | 1*106↓ | 1*106↓ | 1*106↓ | 1*106↓ |
瞬间稳定性 Short-term stability (℃) | 230 | 230 | 230 | 230 |
长期稳定性 Long-term stability (℃) | 90 | 90 | 90 | 90 |
含水率 Water content (%) | 9↓ | 9↓ | 9↓ | 9↓ |
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers | ||||
Electrical Features:
Semi-conductive water blocking tape with high moisture, large expansion rate, and fast expansion rate features. Low resistance, with semi-conducting characteristics, can weaken the electric field strength effectively. Not deformed easily when in external force, used for wrapping of all kinds of power cables. Good heat resistant, high temperature resistance in short-term, cable can keep stable at high temperature.
Slitting and packaging:
Slitting minimum width is 5mm, bore sizes are 52mm or 76mm; the winding maximum outer diameter is 800mm, carton packaging.
