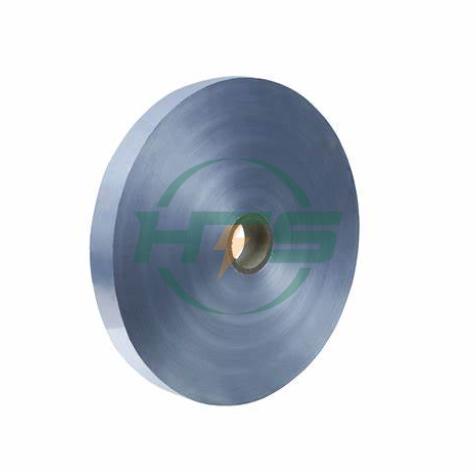

Free edge aluminum polyester tape also called butterfly wings aluminum polyester tape, which slit aluminum Mylar with wide Mylar film to do a second precise compound.
Application:
Mainly used in EMI shielding and wrapping with high frequency cable and electronics, in high frequency cable, like DVI、HDMI、DP etc. for the special requirement with version and technique, free edge aluminum polyester tape was set down and use by association. Compare to common aluminum Mylar and Mylar tape, not only reduce the operate procedures, wrapping form can finish at one time, and reduce non-performing rate of 20%.
Technical Data:
Specification | 宽度 Width(mm) | 组成 Composition | 伸长率 Elongation （%） | 抗张强度 Tensile strength （kgf/m²） | 基重 Basis weight （g/m²） | 电阻 Resistance (Ωμ.mm) | ||
铝厚 AL | 麦拉厚 PET | 麦拉厚 PET | ||||||
37μm | 6+9 | 7μm | 12μm | 12μm | 35↑ | 0.37↑ | 62.70 | 3800↓ |
40μm | 8+11 | 7μm | 12μm | 15μm | 35↑ | 0.38↑ | 63.45 | 5000↓ |
39μm | 8+11 | 9μm | 12μm | 12μm | 35↑ | 0.40↑ | 79.65 | 3800↓ |
42μm | 10+14 | 9μm | 12μm | 15μm | 35↑ | 0.40↑ | 70.45 | 5000↓ |
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers | ||||||||
Electrical Features:
Mainly use as anti-electromagnetic interference, usually in 1-100MHZ, shielding attenuation around 70dB; it can be achieved with free edge aluminum polyester tape.
