Description：

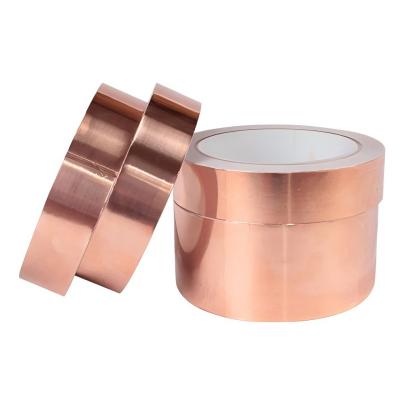

Copper polyester tape also called copper plastic composite tape, consist of copper foil、PET film and adhesive, with oxygen properties in low surface, can be attached with a variety of different base materials, such as metal and insulation materials etc. Widely used in the field, such as communication, computer, radio and other electronic components. And shielding materials for cable, FPC wire board and soft wire board.  Cause rolled copper foil also called electrolytic copper foil with high strength, high flexibility, good ductility, good conductivity, heat dissipation and gloss characteristics it becomes a necessary raw materials of some products.

Application:

Mainly used in shielded cables with high performance requirements, computer cable, signal cable, communication cable, and coaxial cable. Polyester film plays a role in strengthening the tensile strength of the copper foil.

Technical Data:

Electrical Features:

Primarily as anti-electromagnetic interference, usually use in 1-100MHZ, shielding attenuation of 100dB.

Packing:

Slitting minimum width is 2mm, use spool package, conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter is 800mm, carton packaging.
