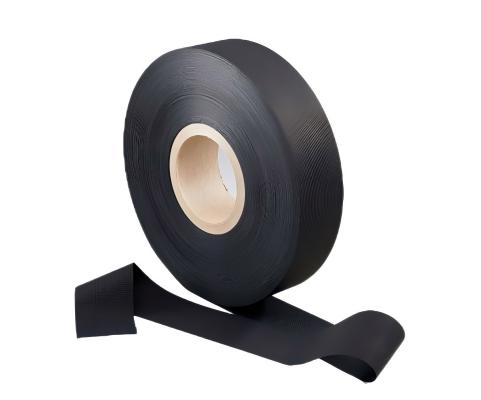

Semi-Conductive Cotton Tape

Made of cotton tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.

Application:

Suitable for wrapping and shielding of cables for mine and other cables.

Technical Data:

规格 Specification (μm)	基重 Basis weight (g/m²)	拉伸强度 Tensile strength (N/cm)	伸长率 Elongation (%)	表面电阻 Surface resistance (Ω)	体积电阻 Volume resistance (Ω.cm)	瞬间稳定性 Short-term stability (℃)	长期稳定性 Long-term stability (℃)
100±30	90±10	100↑	20↑	1500↓	1*106↓	230	145
120±30	100±10	120↑	25↑	1500↓	1*106↓	230	145
140±30	110±105	140↑	25↑	1500↓	1*106↓	230	145
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers

Electrical Features:

Low resistance, with semi-conducting characteristics, used for wrapping of all kinds of power cables.
